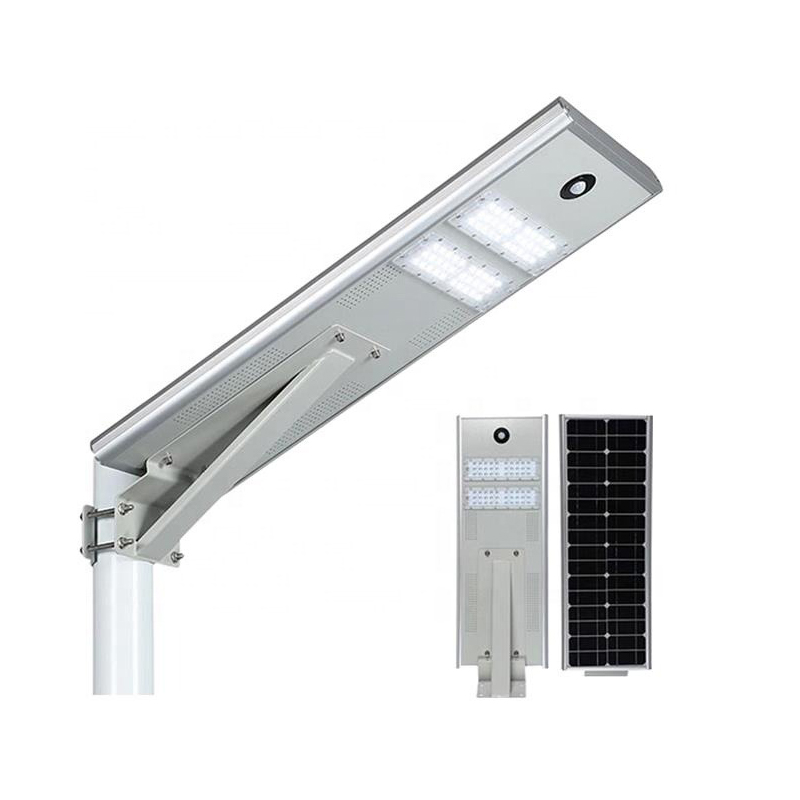

| Name | 100w all in one integrated led solar street light |
| Model | WON-ASSL-AC100W |
| Lamp Material | Aluminum alloy |
| Hardware accessories material | Hot Dipped Galvanized steel+casting aluminum |
| Solar panel | 12V 120W (International used chip) |
| Lifespan of solar panel | 25 years |
| LED light power | 12V 100W |
| LED light source | 250pcs |
| Lumen efficiency | >180 lm/w,Max flux(lm):>3600 |
| Color temperature | 5500~7000K |
| IP Rating | IP65/IP67 |
| Lifespan of LED | 50000 hr |
| Battery | LiFePo4 battery 12V 66AH |
| Battery warranty | 3 years |
| Lifespan of battery | 5~6 years |
| Installation height | 12-14m |
| Distance between pole | 18-25m |
| Working temperature | – 30℃ ~ + 60℃ |
| Control system | MPPT Intelligent regulation current + time control (dark light on, dawn lights off) everyday for 12hours |
| Working time | 10~12hours per day,suitable for 2~3rainy days |
| Product size | 1340*538*50mm |
| Packing size | 1440*590*150mm |
| Quantity | 1sets/Carton |
| N.W | 21kg |
| G.W | 23kg |
20w 45w 60w 100w 120w 150w Solar Rechargeable Lamp all die cast aluminum solar outdoor led street light
- Product Origin:China
- Shipping Port:Shanghai
- Lead Time:7-16days
- LED light power：12V 100W
- Item No:WON-ASSL-AC100W
- Color:Silver
- Warranty:1 Year
Product Param
| Light Source | LED |
| Model Number | WON-SLSL-AL100W |
| Color Temperature(CCT) | 6000K (Daylight Alert) |
| IP Rating | IP66 |
| Beam Angle(°) | 120 |
| CRI (Ra>) | 80 |
| Input Voltage(V) | DC 12V |
| Lamp Luminous Efficiency(lm/w) | 180 |
| Lamp Luminous Flux(lm) | 18000 |
| Working Temperature(℃) | 30 – 60 |
| Color Rendering Index(Ra) | 80 |
| Certification | RoHS, CE |
| Power Supply | Battery |
| Color | White, Other, Black |
| Product name | One Solar Led Street Light |
| Power | 30W/100W/50W/150w/200w/250w/300w/400w |
| Material | Die-casting Aluminum |
| Solar panel | Polycrystalline Silicon |
| IP Grade | IP65 Wateproof |
| Battery | LiFePO4 Battery |
| Charging time | 6-8hours |
| Working Mode | Motion Sensor + Remote Control |
| CCT | 4000K – 6500K |
| Usage | Street Road Garden Square |
Product Briefing
