| Cell size | 182*182mm |
| Type | PERC, Half Cell, MWT, Overlapping |
| Panel Efficiency | 22.70% |
| Warranty | 25 years |
| Panel Dimensions | 2256*1133*35mm |
| Model Number | WON515M-150 |
| Application | Solar Power System |
| OEM Order | Acceptable |
| Solar cell | 10BB Mono 210*70 |
| Size | 2256*1133*35m |

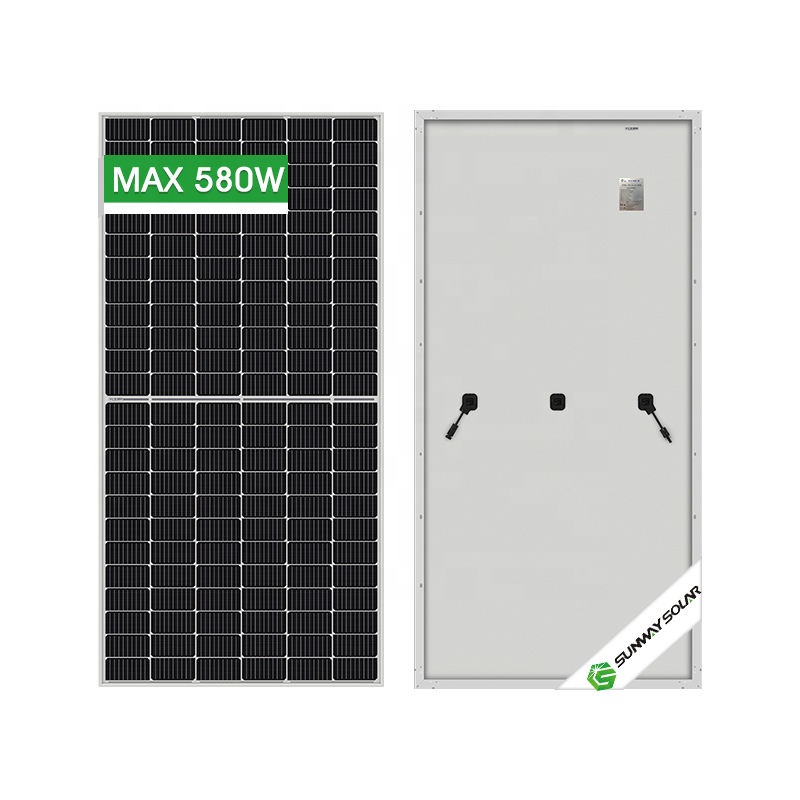

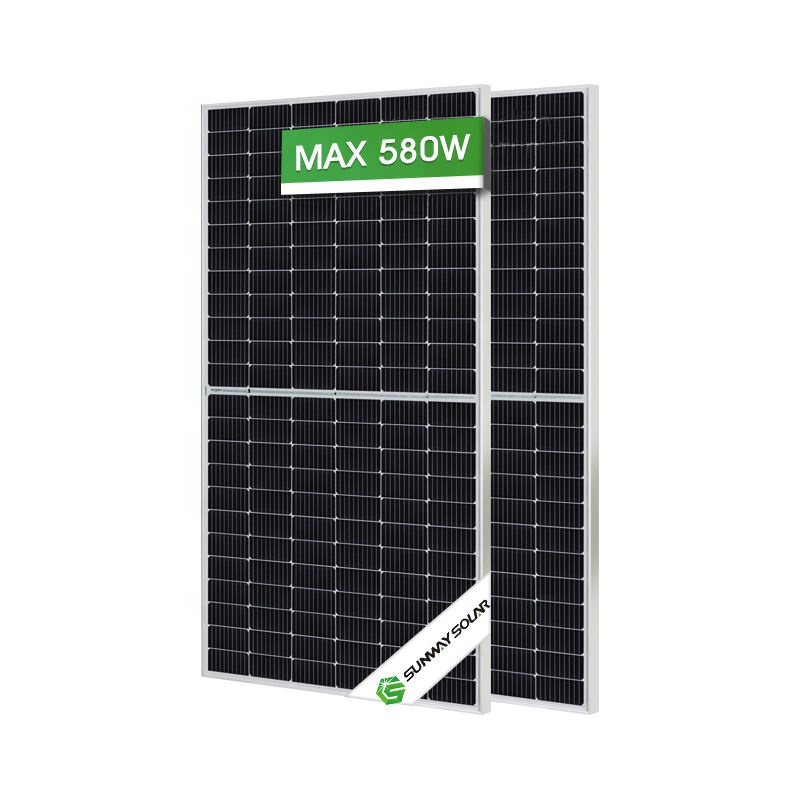

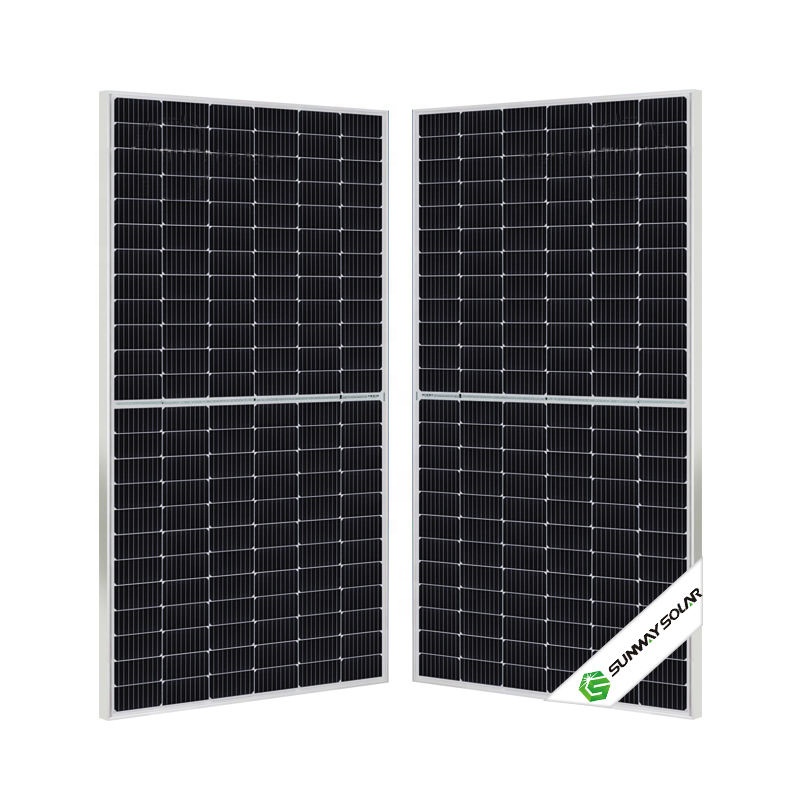

| Product name | Half Cell Monocrystalline Solar Panel |
| Weight | 28kg |
| Frame Color | Color Silver, Black |
| Certificate | CE/TUV, TUV, ETL, CE, ISO |
| Selling Units: | Single item |
| Single package size: | 28X16X8 cm |
| Single gross weight: | 28 kg |
450w 480w 500w 550w sun power mono half cell solar panel 1000w price 600 watt pv module
Product Origin:China
Shipping Port:Shanghai
Lead Time:16days
Panel Efficiency:22.70%
Type:PERC, Half Cell, Bifacial, Double-glass, All Black
Output Voltage :220V
Item No:WON515M-150
Color:Black
Certificate:CE/TUV, TUV, ETL, CE, ISO
Warranty:25 Years
Product Param
| Module | SW555M-144 ~ SW580M-144 | |||||
| Encapsulation | Class/Eva/Cell/Eva/Backsheet | |||||
| Maximum Power Pmax(W) | 555 | 560 | 565 | 570 | 575 | 580 |
| Maximum Power Voltage(Vmp/V) | 41.8 | 42 | 42.2 | 42.4 | 42.6 | 42.8 |
| Maximum Power Current(Imp/A) | 13.29 | 13.35 | 13.41 | 13.47 | 13.53 | 13.59 |
| Open Circuit Voltage(Voc/V) | 50 | 50.2 | 50.4 | 50.6 | 50.8 | 51 |
| Short Circuit Currrnt(Isc/A) | 14.05 | 14.11 | 14.17 | 14.23 | 14.29 | 14.35 |
| Module Efficiency(%) | 21.7 | 21.9 | 22.1 | 22.3 | 22.5 | 22.7 |
| Power Tolerance(W) | 0~+5W | |||||
| Temperature Coefficient of Isc(αIsc) | +0.059%/℃ | |||||
| Temperature Coefficient of Voc(βVoc) | -0.330%/℃ | |||||
| Temperature Coefficient of Pmax(γVoc) | -0.410%/℃ | |||||
| STC | Irradiance 1000w/m.m, Cell Temperature 25℃, Air Mass 1.5 | |||||
Product Briefing
