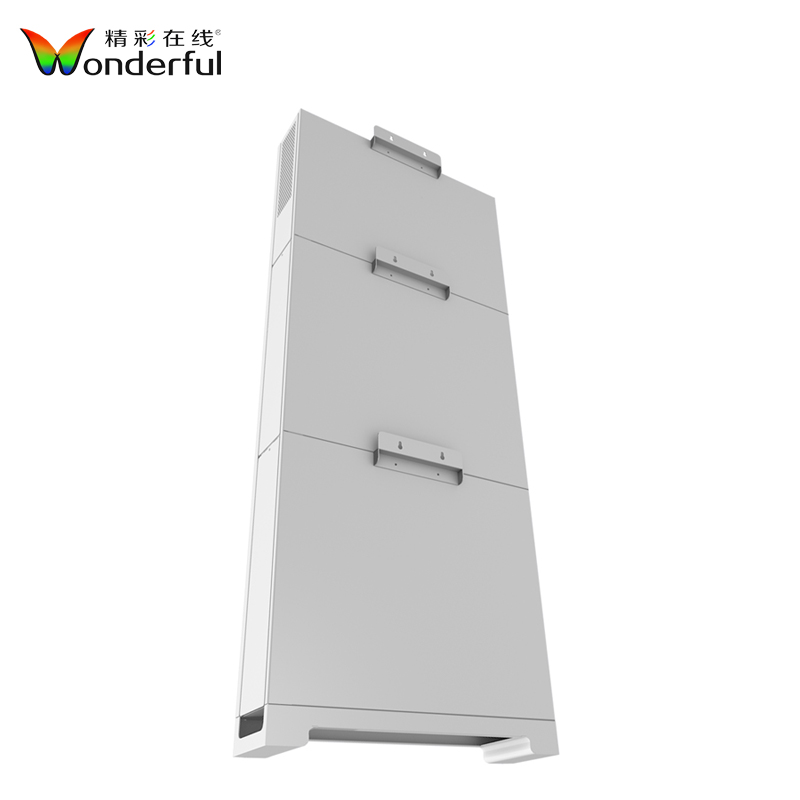

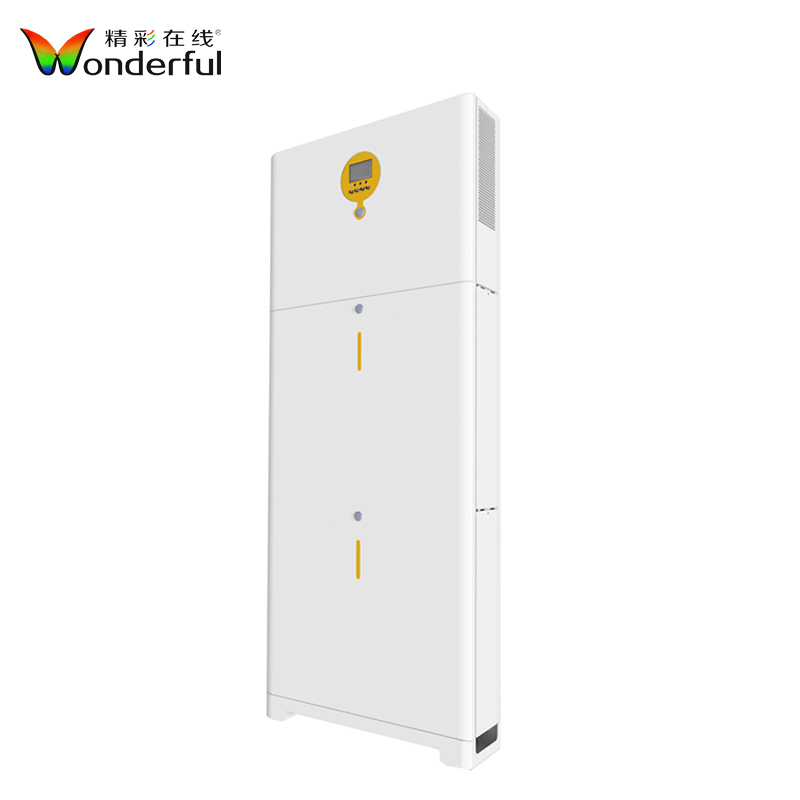

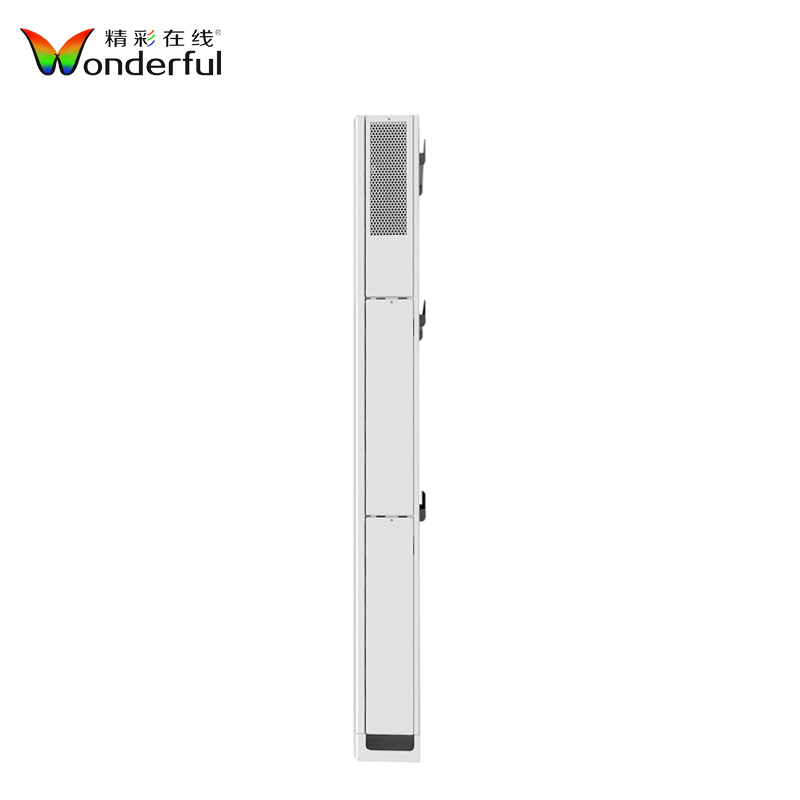

Home Energy Storage Lithium Inverter Integrated System

  • Product Origin:China
  • Shipping Port:Shanghai
  • Lead Time:7-16days
  • Load Power:5KW
  • Type:Off Grid,On Grid,Hybrid
  • Output Voltage :220V
  • Item No:WON-AIO-HE05C-220
  • Color:White
  • Warranty:2 Years

contact us
contact us

Product Param

Inverter Module WON-AIO-HE05C-220 Can Be Set
Output
Rated Output Power 5000W
Max.Peak Power 10000VA
Load Capacity of Motor 4HP
Wave Form PSW(Pure Sine Wave)
Rated Output Voltage 220Vac(single-phase) √
Max.Parallel Capacity 2units(up to10KW) √
Output Mode Off-grid/Hybrid/On-grid √
Solar Input
Solar Charge Type MPPT
Max.Solar Array Power 5500W
Max.Solar Open Circuit Voltage 500Vdc
Grid/Generator Input
Input Voltage Range 90-280Vac
Bypass Overload Current 40A
Battery Charging
Max.Solar Charging Current 100A √
Max.Grid/Generator Charging Current 60A √
General
Dimension 400*580*145mm
Weight(KG) ～18KG
Battery Module WON-AIO-HE05B Can Be Set
Battery Power 5.12KWH
Rated Voltage 51.2V
Rated Capacity 100Ah
Battery Type Prismatic LFP
Cycling Life Span ≥6000(80%DDC,0.5C,25℃）
Max.Parallel Capacity 4units(up to 20.48KWH) √
Dimension 480*580*145mm/unit
Weight(KG) ～45KG
Standard UN38.3,MSDS,UL1973,IEC62619:2017,
EN IEC61000-3-2,EN IEC61000-6-1,ROHS

Product Briefing



  • Designed for families
    support off-grid/on-grid output
    multiple charge and discharge modes available
  • Easy to Install
    No matching and commissjoning required, easy to instal
    Plug-and-play,eliminate the clutter of wires
  • Safety
    High quality LiFePO4 cells
    Smart Lithium ion battery management solutions
  • User Friendly
    Get started quickly and use it insitantly
    Min. width of just 15cm, saving space in the home
  • Easy to Upscale
    Up to four batteries in parallel expand to 20.48kWh
    Up to two systems in parallel with double storage & output
  • Intelligence
    Support Wifi view resl-time data through App
    Large LCD screen with real-time data
