- The lithium iron phosphate battery cell with high safety and features large
rate,and its cycle life is more than 3000 times - Support 3600W high-power AC stable output
- Support PV2400W high-power charging
- Support simultaneous charging of PV and mains/EV
- Support AC and DC while charging and discharging
- Support UPS and conform to international standards
- Optional support for WIFI/APP remote monitoring operation
- Support up to 4 battery pack building block expansion,
each battery pack has a maximum capacity of 5120WH - It supports four application modes: stand-alone, intelligent
parallel, intelligent parallel and micro grid

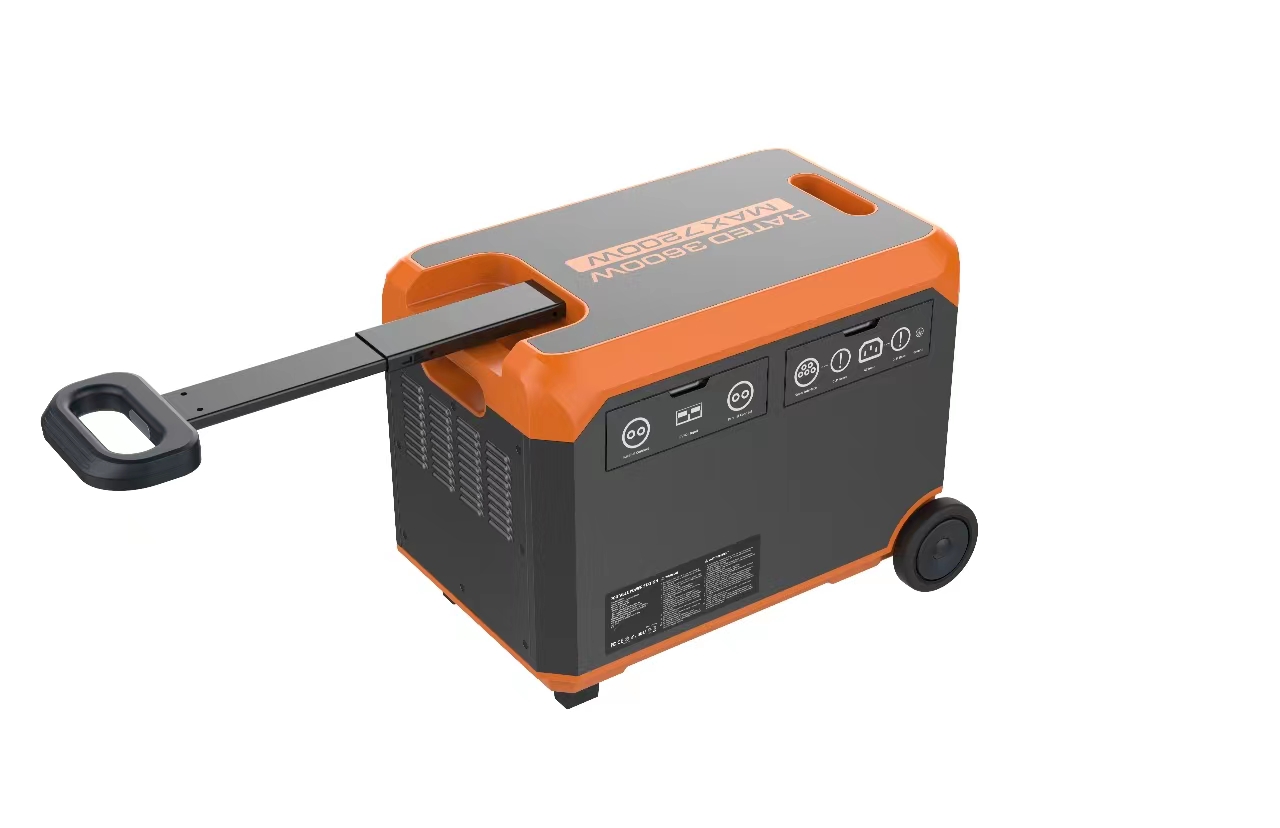

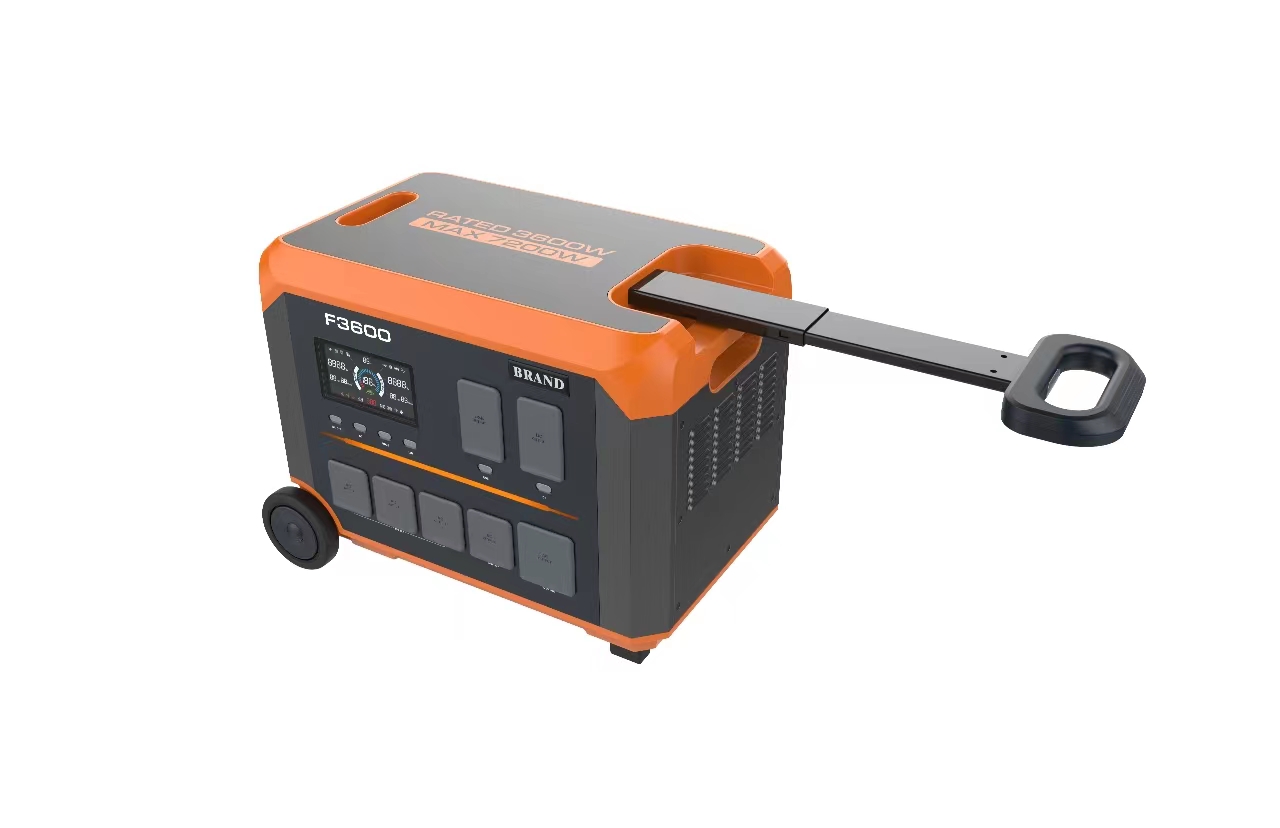

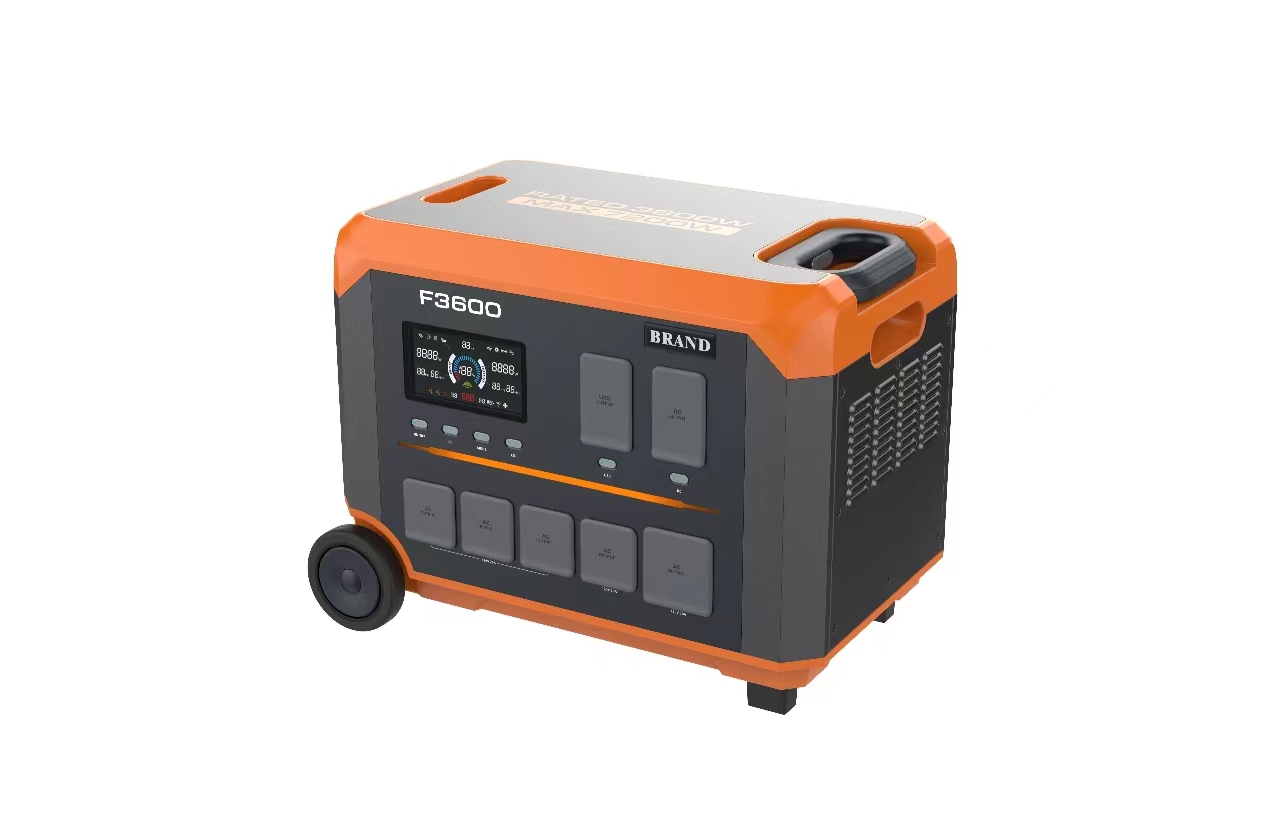

Portable Smart Renewable Energy Storage All-in-one Solar Power System
- Product Origin:China
- Shipping Port:Shanghai
- Lead Time:7-16days
- Load Power:3600W
- Type:Off Grid
- Car charging port :12V/10A 120W
- Item No:WON-AIO-SES-F3600W
- Color:Orange
- Warranty:2 Years
Product Param
| Model | WON-AIO-SES-F3600W | |
| Battery Pack | Type | lithium iron phosphate battery |
| Working Voltage range | 44.8~58.4V | |
| Capacity | 3072WH(host)/5120WH(Expansion battery pack) | |
| Input | Car Charger | 12V/24V 8A 96W/192W |
| PV | 12-150V 25AMAX 2400WMAX | |
| AV | JP Standard: 1500W MAX | |
| US Standard: 1800W MAX | ||
| EU Standard: 2200W MAX | ||
| Australia Standard:2200W MAX | ||
| EV Charging Pile | 3600WMAX | |
| Output | AC | 3600W(7200W Peak) 50/60Hz(output frequency adaptation) |
| USB-A | 18W*4 | |
| USB-C | 100W*2 | |
| Car charging port | 12V/10A 120W | |
| DC5521 | 12V/3A | |
| 36W*2 | ||
| RV | 12V/30A 360W | |
| Wireless | 10W | |
| Other | Intelligent parallel mode | American standard and Japanese standard:two hosts form a 120V/240V system through an intelligent parallel HUB or intelligent distribution box,turn to double power and capacity. |
| European standard and Australian standard: three hosts form a 230V/400V (three-phase)system through an intelligent parallel HUB or intelligent distribution box,turn to triple power and capacity. | ||
| Intelligent parallel capacity mode | One host+expansion battery pack(1-4) to increase capacity and endurance | |
| Microgrid mode | American standard and Japanese standard: two hosts+extended power packs (0-8) form a 120V/240V system through intelligent parallel HUB or intelligent distribution box, with the maximum AC output power of 7.2KW and the maximum capacity of 47KWH. European standard and Australian standard: three hosts+expansion power packs (0-12) form a 230V/400V system (three-phase) through intelligent parallel HUB or intelligent distribution box,with the maximum AC output power of 10.8KW and the maximum capacity of 70KWH. |
|
| UPS switching time | ≤10ms | |
| WIFI/APP | Optional support/Apps need to be customized | |
| Operating ambient temperature | -10～45℃ | |
| Storage ambient temperature | -20～60℃ | |
| Safety certification | UL/FCC/CE/PSE/CP65/ROHS/UN38.3 | |
| Weight | Host about 35Kg | |
| Size | 540*370*423mm | |
