Product Features
(1)Portable design, can meet the electricity demand of different outdoor occasions;(2)Adopt high-performance ternary lithium batteries, with small size, light weight and long service life;

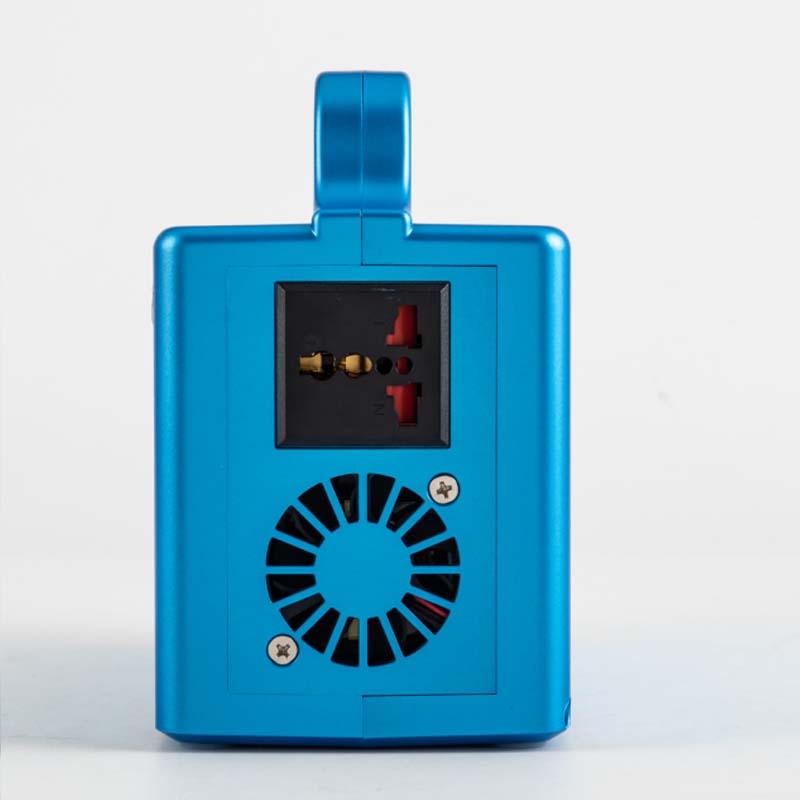

(3) Adopt air-cooled heat dissipation, more reliable;
(4) Own multiple protection functions to protect the safety of the power supply in all directions;
(5)Stable output, wide application performance, suitable for resistive load electrical appliances such as lighting,TV, digital, etc;(6) Support charge by solar and AC mains;

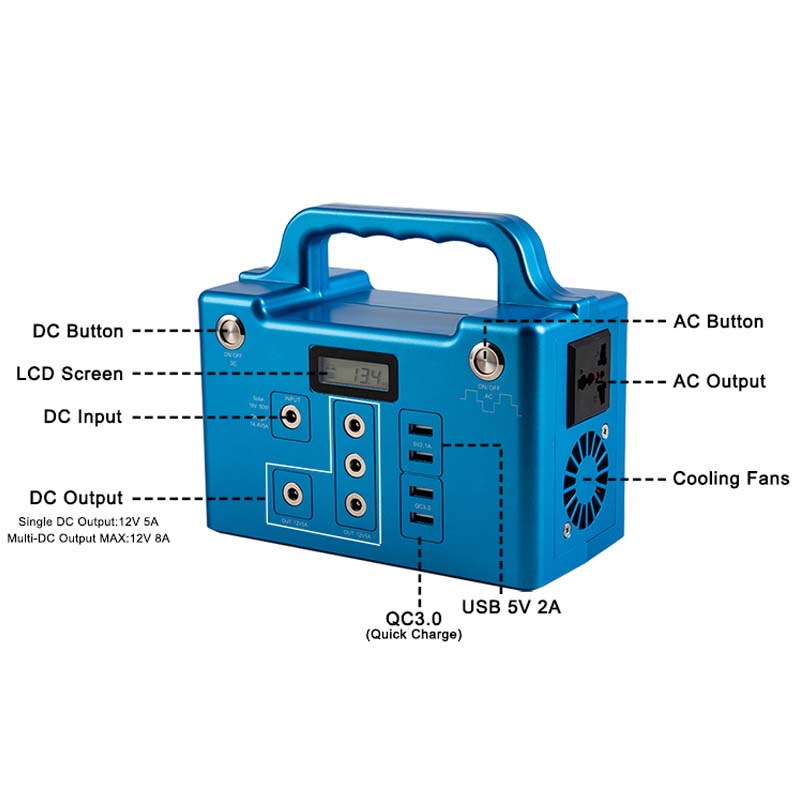

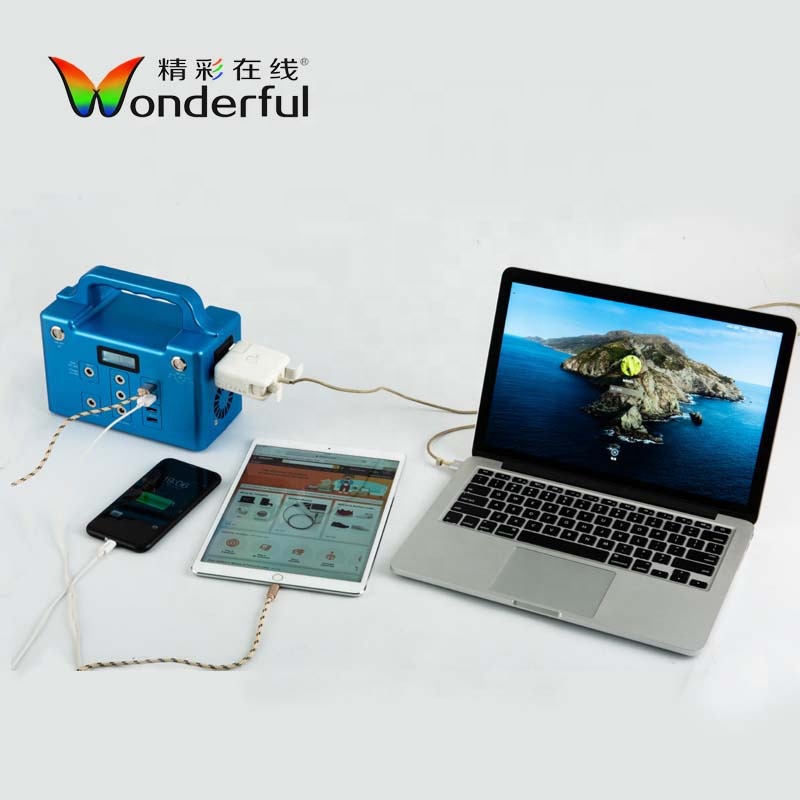

(7) Support AC/USB/Car charding(12V), meet the use of multiple devices.
Product Parameter

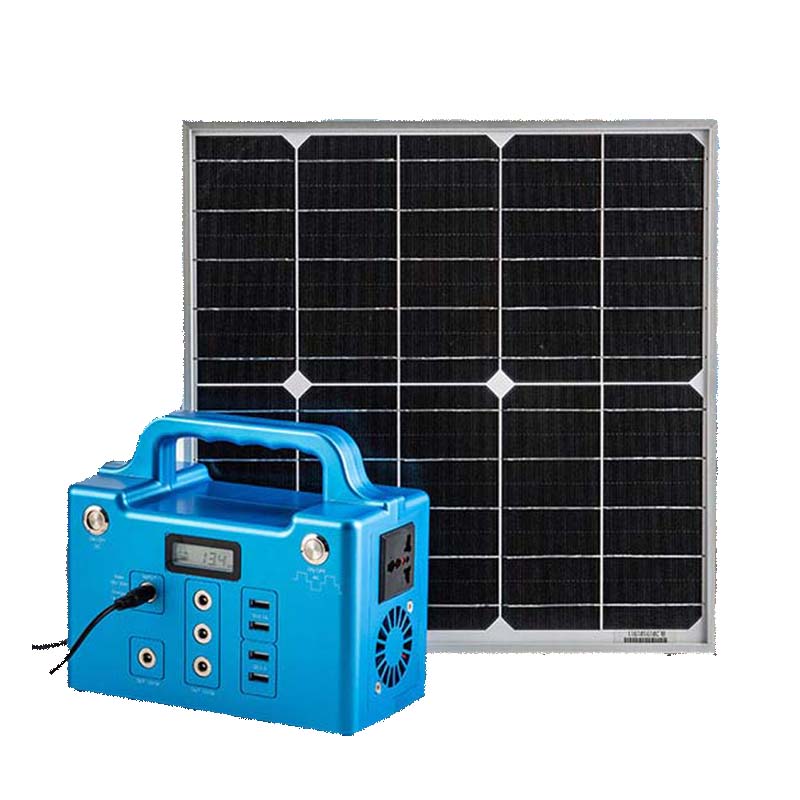

(1) Number of interfaces: AC1interface,DC12V5;(2) Solar panel: Can be connected to solar panels;(3) Battery: Built-in ternary lithium battery.
How does it work efficiently?
(1)Please let the panel be perpendicular to the sun ray by 90 degree.
(2)Best time for charging :11:00am-3:00pm in sunny day.

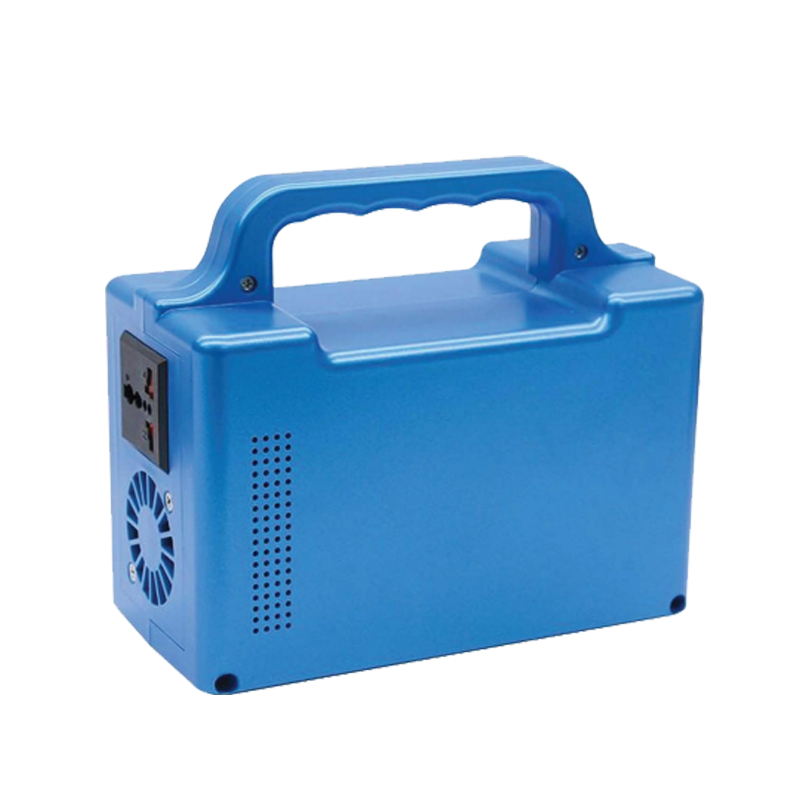

300W Outdoor Camping Portable Power Bank Generator Energy Storage Emergency Backup Power Supply
- Product Origin:China
- Shipping Port:Shanghai
- Lead Time:7-16days
- Load Power:160W、300W
- Type:Off Grid
- Output Voltage :110V、220V
- Item No:WON-PS-160W-110(220)V-F、WON-PS-300W-110(220)V-F
- Color:Blue
- Warranty:2 Years
Product Param
| Model | WON-PS-160W-110V-F | WON-PS-160W-220V-F | WON-PS-300W-110V-F | WON-PS-300W-220V-F |
| AC Output power | 160W | 300W | ||
| AC Output Voltage | 110V Fixed wave | 220V Fixed wave | 110V Fixed wave | 220V Fixed wave |
| DC Output | DC12V 2A(∅5.5*2.1mm)/USB 5V2A/USB QC3.0 | |||
| Cell series connection | 3S | |||
| Rated Capacity | 133Wh | 222Wh | ||
| Rated Voltage | 11.1V | |||
| Charging Voltage | DC12.6-18V | |||
| Discharge cut-off voltage | 9V | |||
| Maximum charging current | 5A | |||
| Cycle life | ≥1000times@80%DOD,25℃ | |||
| Operating temperature | 0-50℃ | |||
| Product Size | 200*105*165mm | |||
| Package dimensions | 290*145*215mm | |||
| Product gross weight | 2.5kg | 2.9kg | ||
